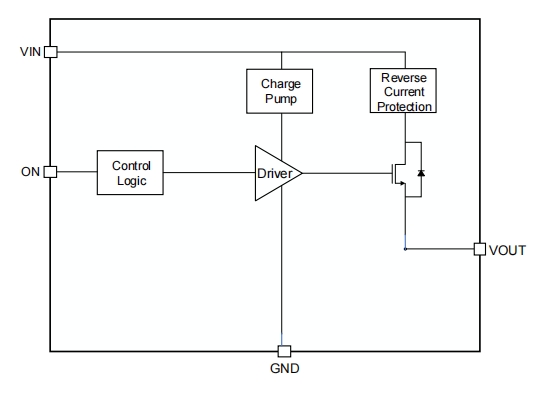

The ET3565 is a small, ultra-low RON load switch with controlled turn on. The device contains a low RON N-Channel MOSFET that can operate over an input voltage range of 1 V to 5.5 V and switch currents of up to 4 A. An integrated charge pump biases the NMOS switch in order to achieve a low switch ON-Resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage GPIO control signals. The rise time of the ET3565 device is internally controlled in order to avoid inrush current.
The ET3565 provides reverse current protection. When the power switch is disabled, the device will not allow the flow of current towards the input side of the switch. The reverse current protection feature is active only when the device is disabled so as to allow for intentional reverse current (when the switch is enabled) for some applications.
The ET3565 is available in a small, space-saving WLCSP6 package and is characterized for operation over the free air temperature range of -40°C to 85°C.
