ET3164
General Description

The ET3164 is a single-channel load switch that provides a configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.1 V to 5.5 V and can support a maximum continuous current of 10 A.
The switch is controlled by an enable pin (ON), which is capable of interfacing directly with low voltage GPIO signals (VIH = 0.8 V). The ET3164 device has an optional QOD pin for quick output discharge when switch is turned off, and the fall time (tF) of the output can be adjusted through an external resistor. There is a Power Good (PG) signal on the device that indicates when the main MOSFET is fully turned on, which can be used to enable a downstream load. Integrated thermal shutdown ensures protection in high temperature environments. The ET3164 is available in a QFN10 package and is characterized for operation over the free-air temperature range of -40°C to +125°C.

Features
  • Input Operating Voltage Range (VIN): 0.1V to 5.5V

  • Single Supply Voltage Range (VBIAS): 1.5V to 5.5V

  • Maximum Continuous Current: 10A

  • Low On-Resistance: 5.2mΩ (Typ)

  • Open Drain Power Good (PG) Signal

  • Adjustable Slew Rate Control

  • Adjustable Quick Output Discharge (QOD)

  • Thermal Shutdown

  • Smart ON pin pull-down (RON_PD)

    – ON ≥ VIH (ION): 25 nA (Typ)

    – ON ≤ VIL (RON_PD): 500 kΩ (Typ)

  • Low Power Consumption:

    – ON State (IQ): 8 μA (Typ)

    – OFF State (ISD): 0.1 μA (Typ)

  • -40°C to +125°C Operating Temperature Range

  • Part No. and Package


Applications
  • Solid-State Drive (SSD)

  • PC and Notebooks

  • Industrial PC and Optical module


Pin Configuration

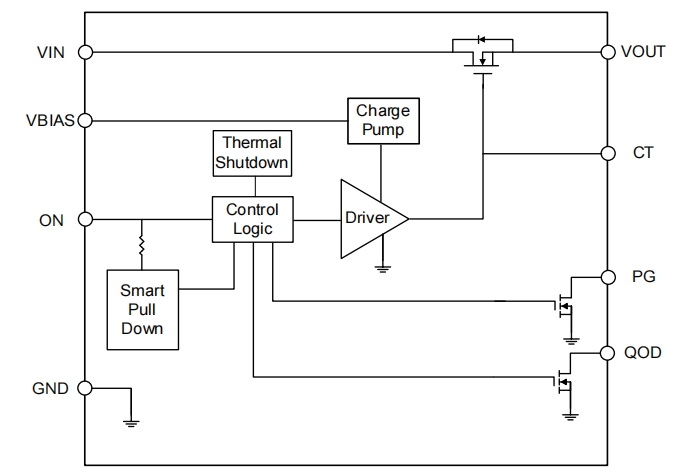

Block Diagram


Application Circuits
