Automotive ET1117
General Description
The ET1117 series are the low dropout three-terminal regulators with fixed output and ADJ output.
The ET1117 series features dropout of 1.3V at 1A load current and very low standby current 2mA. ET1117 series offers thermal shut down function to assure the stability of chip and power system.
The ET1117 series are available in the SOT-223 package.
Features
Maximum Output Current is 1.2A (TYP)
Range of Operation Input Voltage up to 15V (MAX)·
Line Regulation is 0.03%/V (TYP)
Standby Current is 2mA (TYP)
Low Dropout Voltage is 1.3V(TYP)@1A
Environment Temperature Range is -40°C~85°C
Package is SOT-223
Applications
Power Management for Computer Mother
Board, Graphic Card
LCD Monitor and LCD TV
ADSL Modem
Post Regulators For Switching Supplies
Pin Configuration

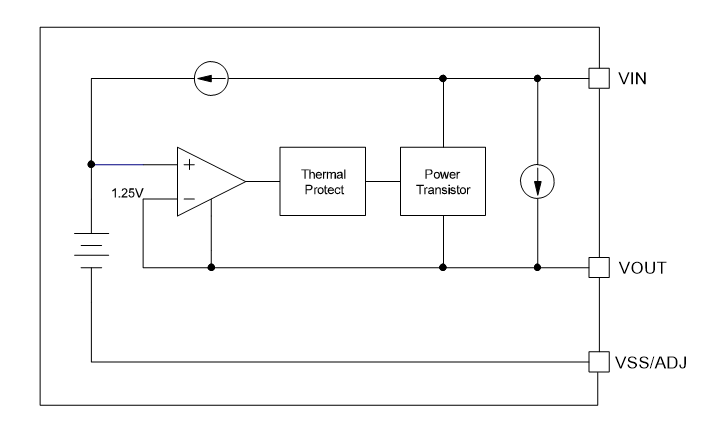

Block Diagram

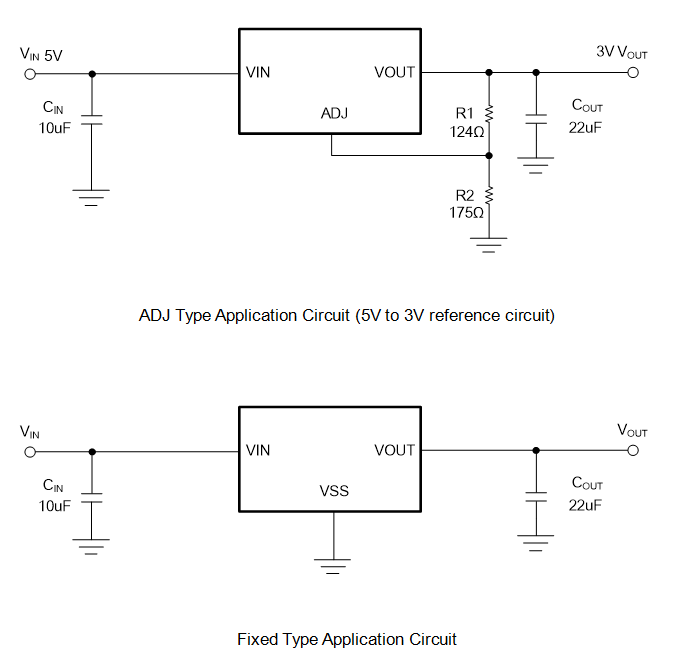

Application Circuits
