Automotive ET1616
General Description
ET1616 is an LED Controller driver with 7 segment output lines, 4 grid output lines, one display memory, control circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to ET1616 via a three-line serial interface, ET1616 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
Features
CMOS Technology
Low Power Consumption
Max 28 LED Display Matrix (7Segs × 4Grids )
8-step Dimming Circuitry
3-Serial Interface for Clock, Data Input/Output, Strobe Pins
Built in RC oscillation
Applications
Household appliances, Toy display
Smart portable devices, Smart audio

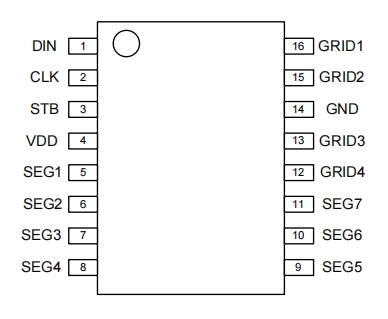

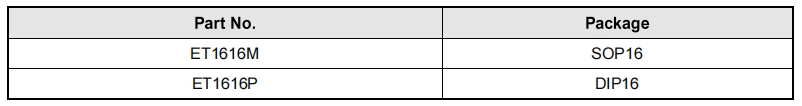

Pin Configuration

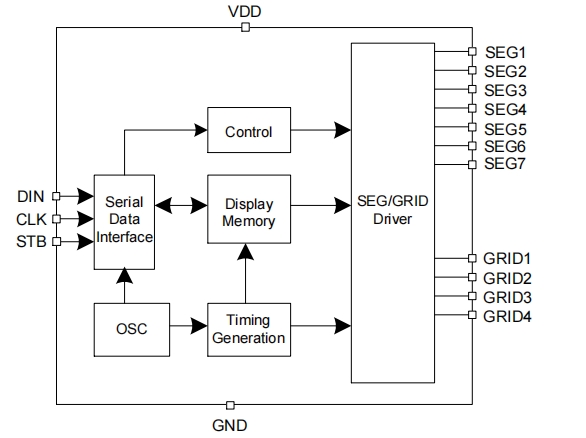

Block Diagram

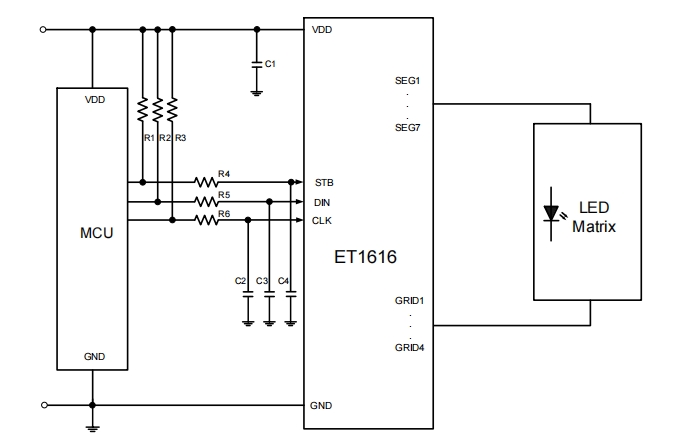

Application Circuits
