Automotive ET1624
General Description
ET1624 is an LED Controller driver with 11 segment output lines, 4 grid output lines, 3 segment/grid output lines, one display memory, control circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to ET1624 via a three-line serial interface, ET1624 pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantages.
Features
CMOS Technology
Low Power Consumption
Multiple Display Modes(14Segs × 4Grids ~11Segs × 7Grids)
8-step Dimming Circuitry
3-Serial Interface for Clock, Data Input/Output, Strobe Pins
Built in RC oscillation
Package: SOP24(ET1624M)
Applications
Household appliances, Toy display
Smart portable devices, Smart audio

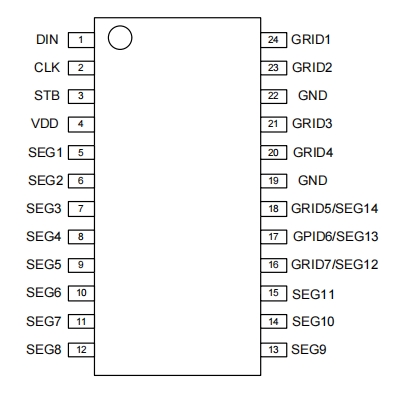

Pin Configuration
Block Diagram

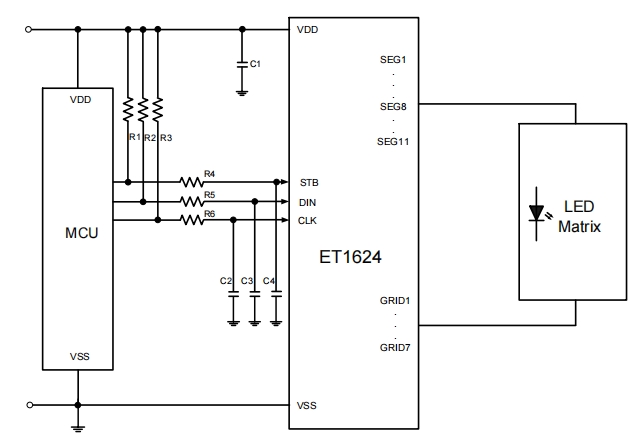

Application Circuits
