Automotive ET1629A
General Description
ET1629A is a matrix LED driver IC, it has 16 segment outputs and 8 grid outputs and 1 display storage unit and some control circuit. It inherits MCU digital interface, data latch and LED driver module. It is suitable for small LED display driver.
Features
Display Mode: 16 Segs×8 Grids
Gray adjustment: 8 duty cycles
Three wire serial interface
Built in RC oscillation
Built in power on reset
Package：SOP32（ET1629A），QFN32（ET1629AY）
Tape Information: ET1629A-TP，ET1629AY-TP

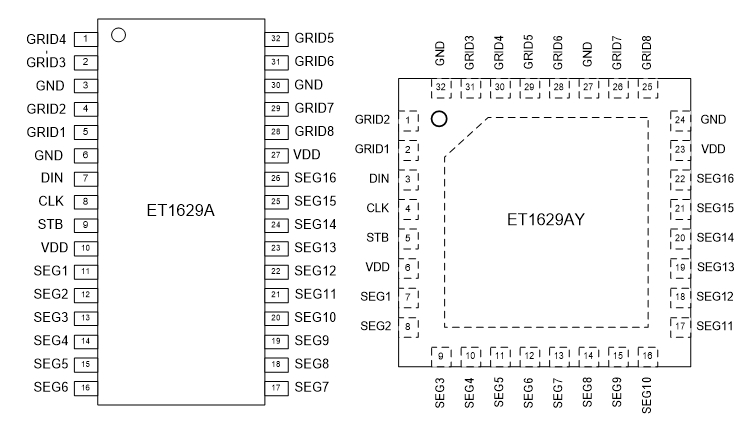

Pin Configuration

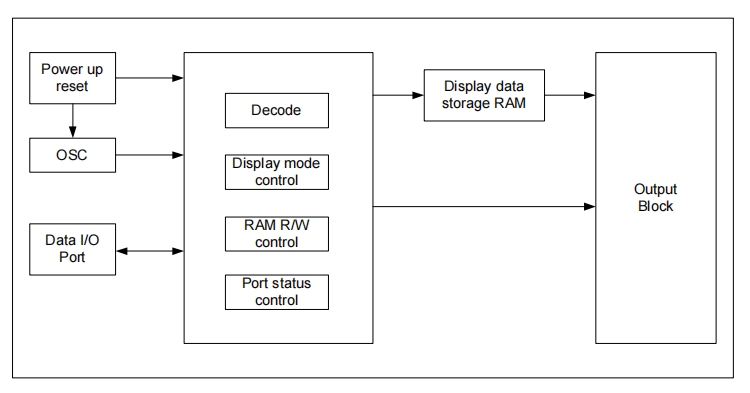

Block Diagram

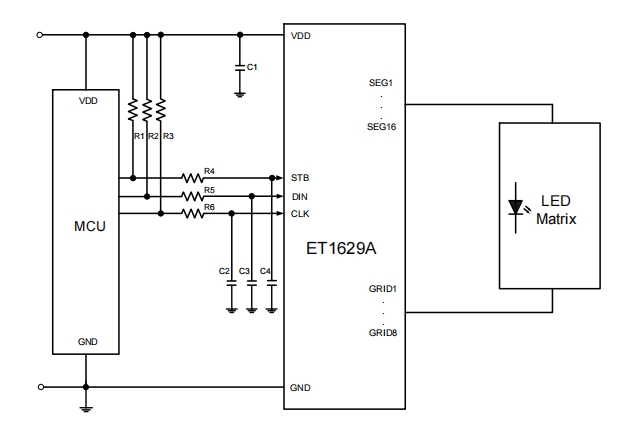

Application Circuits
