ET1629B
General Description

ET1629B是显示亮度可调的LED显示控制驱动电路。由14个段输出、8个位输出，1个显示存储器、按键扫描电路及相关控制电路组成了一个高可靠性的LED驱动电路，采用3线通讯串行接口。

Download Sample

Features

Pin Configuration

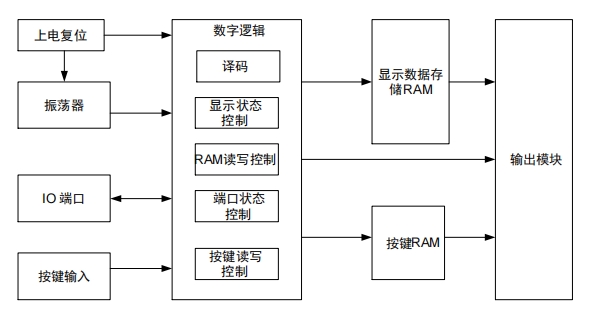

Block Diagram

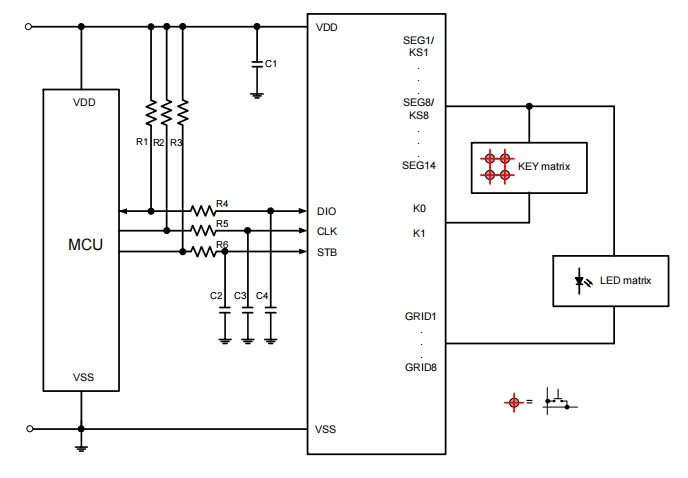

Application Circuits

Features

  • CMOS工艺，低功耗

  • 显示矩阵：14段×8位

  • 键扫描矩阵：8×2按键矩阵

  • 8个层次的整体亮度调节

  • 3线串行接口

  • 内置RC振荡
