Automotive ET8211
General Description
ET8211 is a 16 bits Digital-to-Analog Converter IC utilizing CMOS Technology specially designed for stereo audio applications. ET8211 converts the 16 bits serial data into an analog output voltage. The voltage of each output channel of ET8211 is driven by an operational amplifier allowing easy analog output.
Features
CMOS Technology
Low Power Consumption
Two Voltage Output Channels in the same chip
16-bits Dynamic Range
Low Total Harmonic Distortion
3.3/5.0 Volts Power Supply
Part and Package

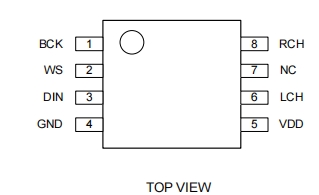

Pin Configuration

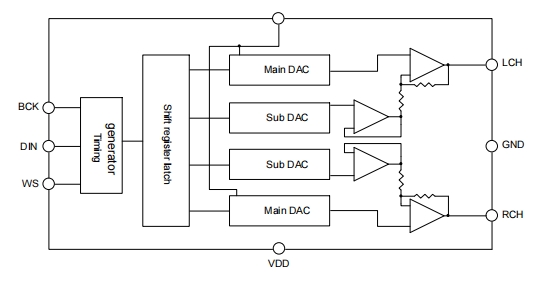

Block Diagram

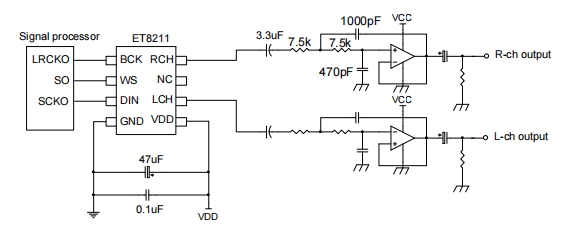

Application Circuits
