Automotive ET2095
General Description
The ET2095 load switch features True Reverse-Current Blocking (TRCB) capability to isolate the output from the system. The internal switch features low 100mΩ (typ) on-resistance and operate from a 2.5V to 5.5V input voltage range. The slew-rate controlled switch is also ideal for a large load capacitor as well as high-current load switching applications. ET2095 also has over-voltage protection and over-temperature protection.
ET2095 provide an ultra-small WLCSP9 package, is suitable for space-limited portable device applications.
The device operates over the -40°C to +85°C extended temperature range.
Features
Wide Input Voltage Range from 2.5V to 5.5V
Absolute maximum voltage of VOUT up to 28V
2.5A Maximum Current Capability
Adjustable Current Limit Set Range : 0.05A ~ 2.5A
<0.1A with 16% Accuracy
0.1A~2.0A with 10% Accuracy
>2.0A with 12% Accuracy
Integrated Typical 100mΩ N-Channel MOSFET Switch
Over-voltage Lockout at VOUT = 5.8V Typical
Fault Flag Open Drain Output
Thermal Shutdown Protection (OTP)
Under-Voltage Lockout (UVLO)
True Reverse-Current Blocking (TRCB)
ESD Protected:
Compliance to IEC61000-4-2 15kV(Air) and 8kV (Contact) Pass
HBM >2kV Pass and CDM >1.5kV Pass
Applications
Smart Phones, Tablet PCs
HDD, Storage, and Solid State Memory Devices
Portable Media Devices, Laptop & MID
SLR Digital Cameras
Pin Configuration

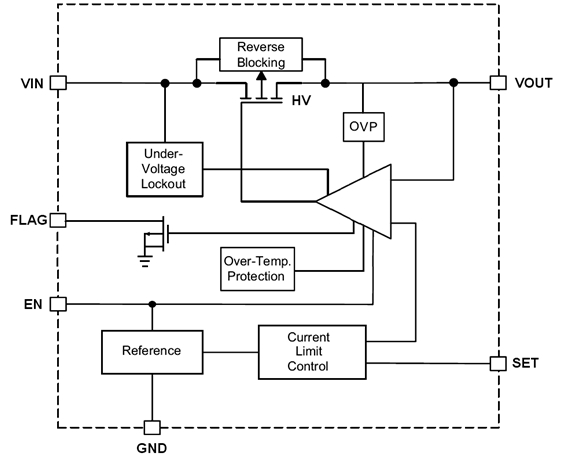

Block Diagram
Application Circuits
