Automotive ET9528
General Description
ET9528 is an Over-Voltage-Protection (OVP) and Over-Current-Protection (OCP) device. It can disconnect IN to OUT to protect load in case wrong input operating conditions are detected. The system is positive over-voltage protected up to 36V. The internal over-voltage thresholds (OVLO) is 6.1V and internal over-current thresholds (OCP) is 2.5A. ET9528 also has internal over temperature protect(OTP) function and it can monitor chip temperature to protect the device.
Features
Typical RON is110mΩ N-Channel MOSFET @5V/1A
VIN Operating Range: 2.5V to 36VInternal Over-voltage Lockout : 6.1V
Internal Over-current Lockout : 2.5A (MIN)
Over-voltage-Protection Response Time：<500ns
Startup Debounce Time: 16ms (TYP).
Typical Output Power on Time: 16.3ms (TYP).
Internal Thermal-Shutdown Protection
All pins ESD Protected: Human Body Model (JESD22-A114 ) ± 2KV Pass
SOT23-6 package
Applications
GPS and Navigation Equipment
Portable Media Devices, Laptop & MID
SLR Digital Cameras
Industrial Handheld and Enterprise Equipment

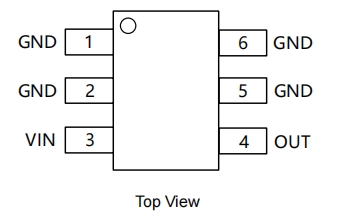

Pin Configuration

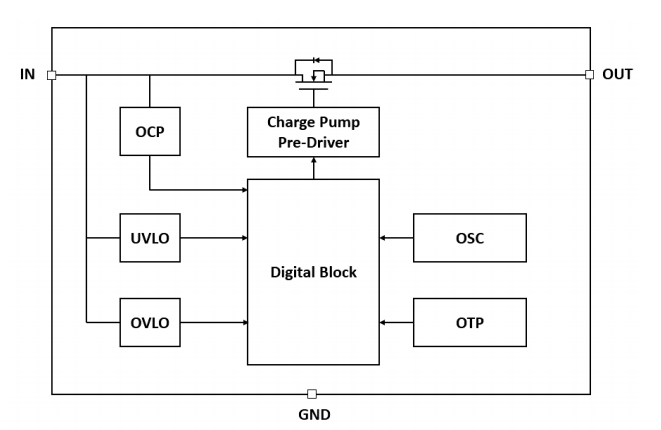

Block Diagram

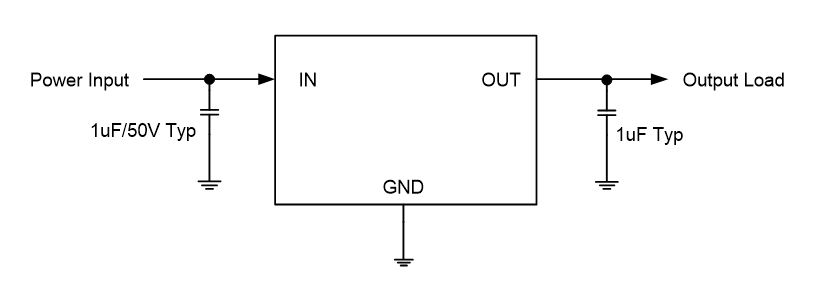

Application Circuits
