Product picture |
PartNumber |
Features
请选择
请选择
4-Channel, I2C Control
7-Channel, I2C Control
Dual 150mA LDO
|
VIN(V)
请选择
请选择
0.6~2.0; 1.8~5.5
0.6~2.0; 3.0~5.5
1.0~2.0; 1.9~5.5
1.0~2.2; 2.5~5.5
1.6~5.5
|
VOUT(V)
请选择
请选择
0.496~1.8; 1.38~3.412
0.6~1.8; 1.2~4.3
0.8~1.8; 1.5~3.75
1.2/ 1.8/2.8/3.3
|
IOUT(mA)
请选择
请选择
1000; 400
150
1500; 600
1500;1200;400
800; 300
|
Dropout Voltage @IOUT (mV)
请选择
请选择
100@1.05V; 150@1.8V
100@1.2V; 170@1.8V
100@3.3V
105@1.2V; 90@2.8V
150@1.2V; 160@1.2V; 120@2.8V
|
IQ (μA)
请选择
请选择
85
120
150
40/CH
|
PSRR@1kHz (dB)
请选择
请选择
65; 92
75
80; 90
80; 92
|
Noise (μVRMS)
请选择
请选择
100
30; 10
50; 8
|
Package
请选择
请选择
DFN10(2.0X2.0)
DFN6(1.2X1.2)
WLCSP20(0.35 Pitch)
|
|---|---|---|---|---|---|---|---|---|---|---|
|
ET5917 | 7-Channel, I2C Control | 0.6~2.0; 1.8~5.5 | 0.496~1.8; 1.38~3.412 | 1500; 600 | 100@1.2V; 170@1.8V | 120 | 80; 90 | 30; 10 | WLCSP20(0.35 Pitch) |
|

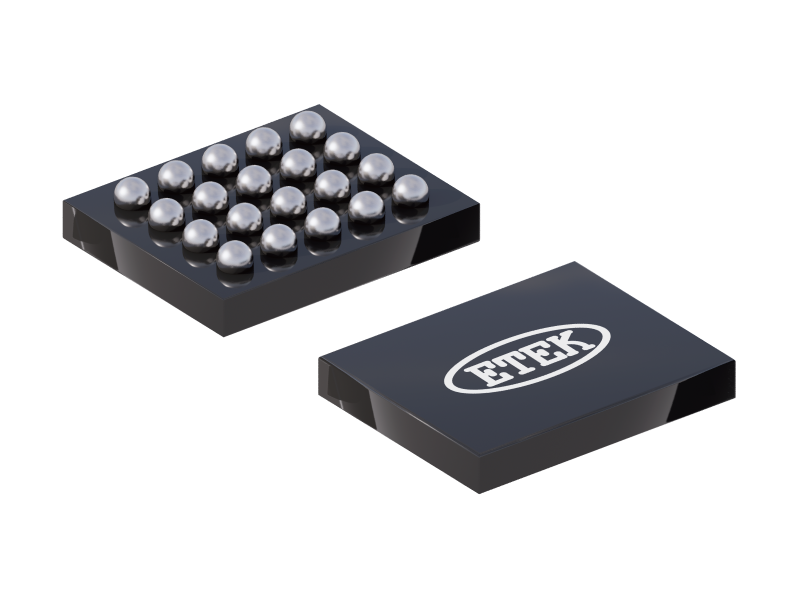

ET5907 | 7-Channel, I2C Control | 1.0~2.0; 1.9~5.5 | 0.8~1.8; 1.5~3.75 | 1000; 400 | 100@1.05V; 150@1.8V | 150 | 80; 92 | 30; 10 | WLCSP20(0.35 Pitch) |
|

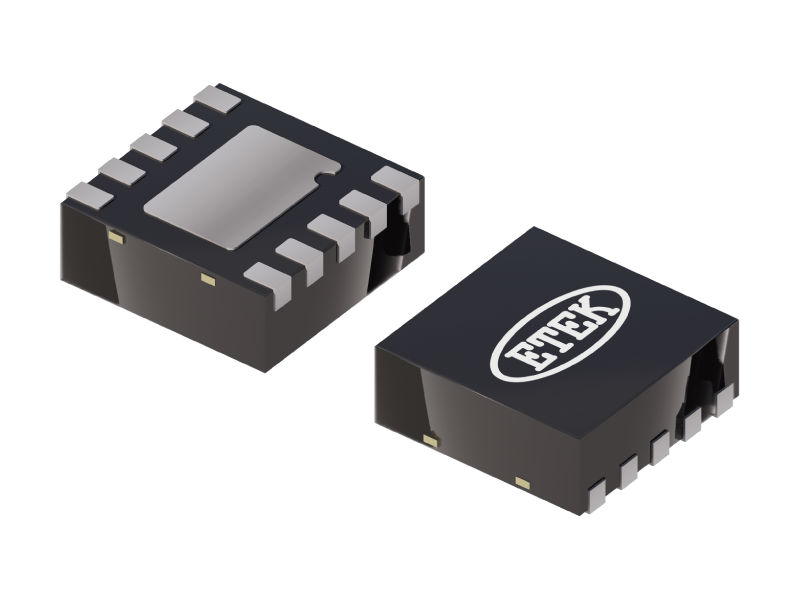

ET5904A | 4-Channel, I2C Control | 1.0~2.2; 2.5~5.5 | 0.6~1.8; 1.2~4.3 | 1500;1200;400 | 150@1.2V; 160@1.2V; 120@2.8V | 85 | 80; 90 | 50; 8 | DFN10(2.0X2.0) |
|
ET5904 | 4-Channel, I2C Control | 0.6~2.0; 3.0~5.5 | 0.6~1.8; 1.2~4.3 | 800; 300 | 105@1.2V; 90@2.8V | 85 | 65; 92 | 50; 8 | DFN10(2.0X2.0) |
|

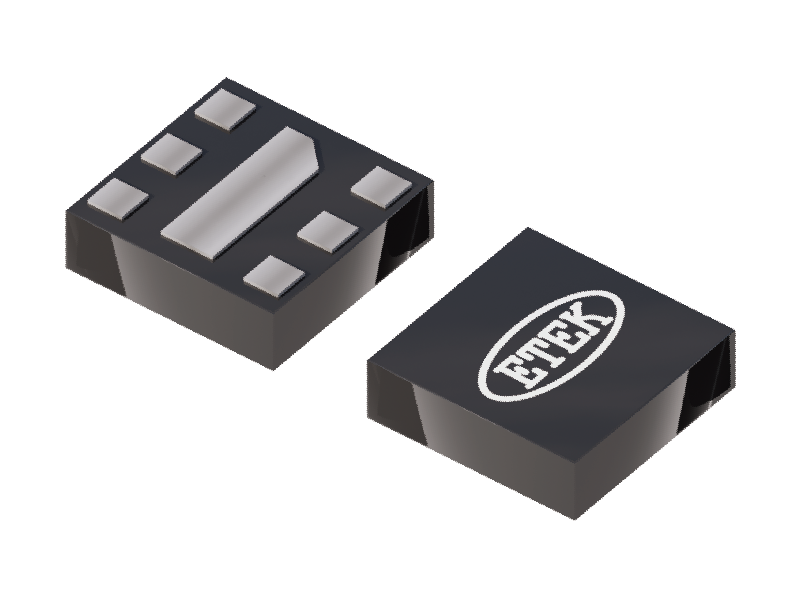

ET515DXXYB | Dual 150mA LDO | 1.6~5.5 | 1.2/ 1.8/2.8/3.3 | 150 | 100@3.3V | 40/CH | 75 | 100 | DFN6(1.2X1.2) |
