General Description
The ET3167 is a bidirectional, SPDT (single-pole/ double-throw), CMOS analog switch. It operates from a 1.8V to 5.5V single power supply.
The ET3167 features high bandwidth, low on resistance and low distortion. The high performances make it very suitable for multiple applications, such as portable equipment, audio and video signal routing, etc. Low power consumption is also one of the important reasons that make it a good choice.
Features
Single Supply Voltage Range: 1.8V to 5.5V
Low On-Resistance: 26Ω (TYP) at V+=5V
Low On-Resistance Flatness
-3dB Bandwidth: 500MHz
Fast Switch Times:
-- tON:20ns(TYP)
-- tOFF:15ns(TYP)
High Off-Isolation: -63dB at 10MHz
Rail-to-Rail Input and Output Operation
TTL/CMOS Compatible
Break-Before-Make Switching
-40℃ to +85℃ Operating Temperature Range
Package information:
Applications
Portable Equipment
Cellular Phones
Computer Peripherals
Sample-and-Hold Circuits
Personal Digital Assistants
Battery-Powered Systems
Audio and Video Signal Routing

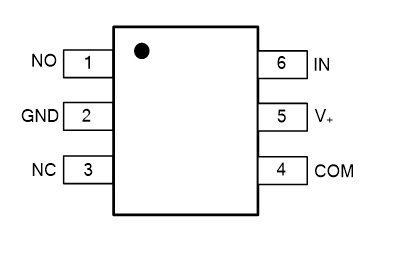

Pin Configuration

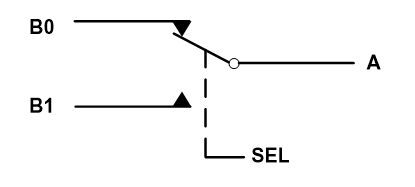

Block Diagram
