车规 ET3856
General Description

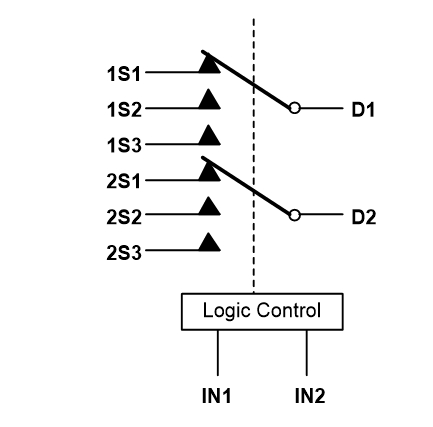

The ET3856 is a high-speed CMOS low voltage dual analog SP3T (Single Pole Triple Throw) switch or Dual 3:1 Multiplexer/Demultiplexer Switch fabricated in silicon gate CMOS technology. It is designed to operate from 1.65V to 4.3V, making this device ideal for portable applications.
The device offers very low ON-Resistance (<1.0Ω) at VCC = 4.3V. The disabling and enabling of switches are done by setting the IN1 and IN2 control pins. Additional key features are fast switching speed, and Ultra Low Power Consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.
Features
High Speed:
--tPD = 0.3ns (TYP.) @ VCC = 3.0V
--tPD = 0.4ns (TYP.) @ VCC = 2.3V
Ultra Low Power Dissipation:
--ICC = 0.2μA (MAX.) @ TA = 85°C
Low “ON” Resistance VIN = 0V:
--RON = 1.1Ω(MAX. TA = 25ºC) @ VCC=4.3V
--RON = 1.5Ω(MAX. TA = 25ºC) @ VCC=3.0V
--RON = 1.8Ω(MAX. TA = 25ºC) @ VCC=2.3V
Wide Operating Voltage Range:
--VCC = 1.65V to 4.3V Single Supply
4.3V Tolerant And 1.8V Compatible Threshold On Digital Control Input at VCC = 2.3 to 4.3V
Latch-Up Performance Exceeds 300mA
ESD Performance (Analog Channel. Vs. GND): HBM >2kV
Part No. and package

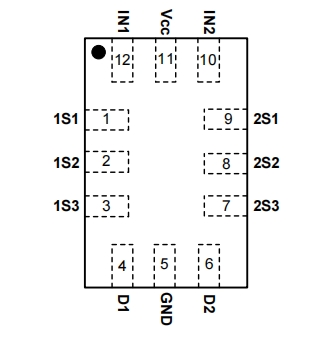

Pin Configuration
