车规 ET48751
General Description
The ET48751 is an 8-channel CMOS analog signal multiplexer. It operates from 2.5V to 5.5V single power supply and all digital inputs support 1.8V logic control.
The ET48751 features low voltage, low on-resistance and low off-leakage current. The high performances make it very suitable for multiple applications, such as cellular phones, audio and video signal routing, etc.
The ET48751 is available in Green SOP16, TSSOP16 and QFN16-3×3 packages. It operates over an ambient temperature range of -40°C to +85°C.
Features
Single Supply Voltage Range: 2.5V to 5.5V
On-Resistance: 48Ω(TYP) with 5V Supply
Internal A, B, C Rise Time: 45ns (TYP), VCC = 5V
Internal A, B, C Fall Time: 50ns (TYP), VCC = 5V
1.8V Logic Compatible
Low On-Resistance Flatness
High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
Low Off-Leakage Current: 1nA (TYP) at +25°C
Low On-Leakage Current: 1nA (TYP) at +25°C
Low Distortion: 0.7% (RL = 600Ω, f = 20Hz to 20kHz)
-40°C to +85°C Operating Temperature Range

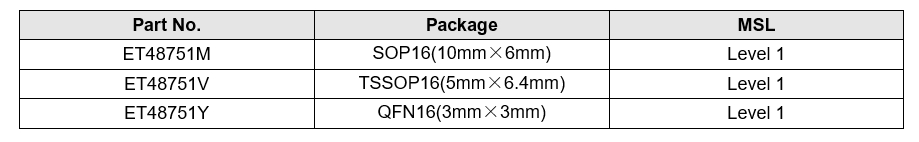

Package information:
Applications
Automotive
Portable Equipment
Sample-and-Hold Circuits
Data-Acquisition Systems
Battery-Powered Systems
Audio and Video Signal Routing

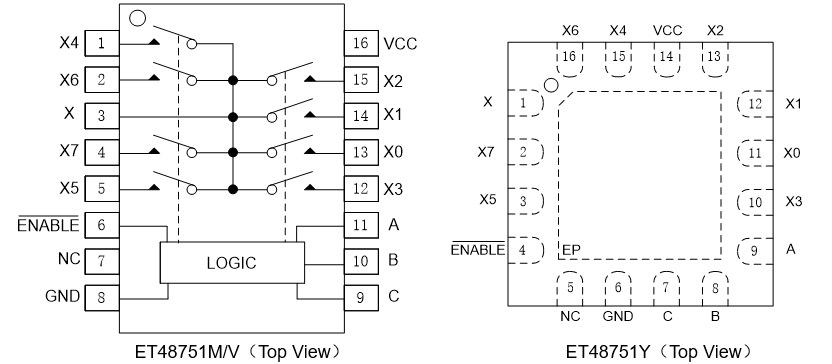

Pin Configuration
