车规 ET48752
General Description
The ET48752 is a CMOS analog multiplexer which consists of two 4-channel multiplexers. It operates from 2.5V to 5.5V single power supply and all digital inputs support 1.8V logic control.
The ET48752 features low voltage, low on-resistance and low off-leakage current. The high performances make it very suitable for multiple applications, such as cellular phones, audio and video signal routing, etc.
The ET48752 is available in Green TSSOP16 packages. It operates over an ambient temperature range of -40℃ to +85℃.
Features
Single Supply Voltage Range: 2.5V to 5.5V
On-Resistance: 48Ω(TYP) with 5V Supply
Internal A, B Rise Time: 45ns (TYP), VCC = 5V
Internal A, B Fall Time: 50ns (TYP), VCC = 5V
1.8V Logic Compatible
Low On-Resistance Flatness
Low Crosstalk: -110dB (f = 1MHz)
High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
Low Off-Leakage Current: 1nA (TYP) at +25°C
Low On-Leakage Current: 1nA (TYP) at +25°C
Low Distortion: 0.7% (RL = 600Ω, f = 20Hz to 20kHz)
-40°C to +85°C Operating Temperature Range
Package information:
Applications
Automotive
Portable Equipment
Sample-and-Hold Circuits
Data-Acquisition Systems
Battery-Powered Systems
Audio and Video Signal Routing

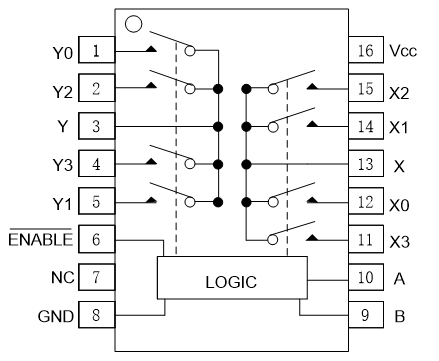

Pin Configuration
