车规 ET48753
General Description
The ET48753 is a CMOS analog multiplexer which consists of three single-pole/double-throw (SPDT) switches. It operates from 2.5V to 5.5V single power supply and all digital inputs support 1.8V logic control.
The ET48753 features low voltage, low on-resistance and low off-leakage current. The high performances make it very suitable for multiple applications, such as cellular phones, audio and video signal routing, etc.
Features
Single Supply Voltage Range: 2.5V to 5.5V
On-Resistance: 48Ω(TYP) with 5V Supply
Internal A, B, C Rise Time: 45ns (TYP), VCC = 5V
Internal A, B, C Fall Time: 50ns (TYP), VCC = 5V
1.8V Logic Compatible
Low On-Resistance Flatness
Low Crosstalk: -100dB (RL = 50Ω, f = 1MHz)
High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
Low Off-Leakage Current: 1nA (TYP) at +25°C
Low On-Leakage Current: 1nA (TYP) at +25°C
Low Distortion: 0.7% (RL = 600Ω, f = 20Hz to 20kHz)
-40°C to +85°C Operating Temperature Range

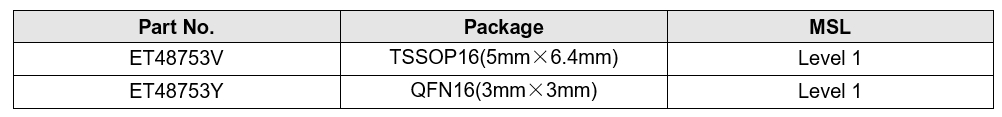

Package information:
Applications
