车规 ET48754
General Description
The ET48754 is a quad, SPST (single-pole/single -throw), CMOS analog switch. It operates from 2.5V to 5.5V single power supply and all digital inputs support 1.8V logic control.
The ET48754 features low voltage, low on-resistance and low off-leakage current. The high performances make it very suitable for multiple applications, such as cellular phones, audio and video signal routing, etc.
The ET48754 is available in Green TSSOP14 packages. It operates over an ambient temperature range of -40°C to +85°C.
Features
Single Supply Voltage Range: 2.5V to 5.5V
On-Resistance: 24Ω (TYP) with 5V Supply
Internal A, B, C Rise Time: 45ns (TYP), VCC = 5V
Internal A, B, C Fall Time: 50ns (TYP), VCC = 5V
“T” Type Switch
1.8V Logic Compatible
Low On-Resistance Flatness
High Off-Isolation: -80dB (RL = 50Ω, f = 1MHz)
Low Off-Leakage Current: 1nA (TYP) at +25°C
Low On-Leakage Current: 1nA (TYP) at +25°C
Low Distortion: 0.35% (RL = 600Ω, f = 20Hz to 20kHz)

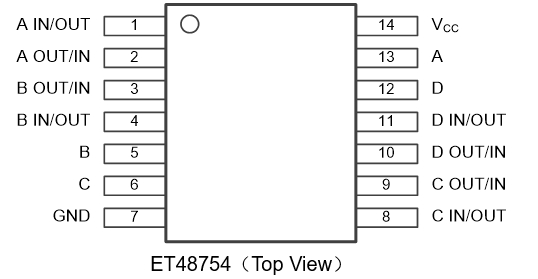

Package Information:
Applications
