车规 ET48755
General Description
The ET48755 is a CMOS analog switch configured as a 4:1 multiplexer. This CMOS device can operate from 2.5V to 5.5V single supplies. Each switch can handle rail-to-rail analog signals. The off leakage current is only 1nA (TYP) at +25°C.
All digital inputs can support 1.8V logic control I/O.
The ET48755 is available in Green MSOP-10 package. It operates over an ambient temperature range of -40°C to +85°C.
Features
Guaranteed On-Resistance 24Ω (TYP) with +5V Supply
Guaranteed On-Resistance Match Between Channels
“T” Type Switch
Low Off Leakage Current 1nA (TYP) at +25°C
Low On Leakage Current 1nA (TYP) at +25°C
Optimized Rise Time and Fall Time of ADDA and ADDB
Control Pins to Reduce Clock Feedthrough Effect
2.5V to 5.5V Single-Supply Operation
1.8V Logic Compatible
Low Distortion: 0.35% (RL = 600Ω, f = 20Hz to 20kHz)
High Off-Isolation: -80dB (RL = 50Ω, f = 1MHz)
-40°C to +85°C Operating Temperature Range
Package information:
Applications
Battery-Operated Equipment
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communications Circuits
Automotive

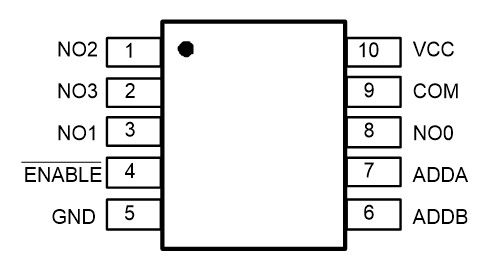

Pin Configuration
